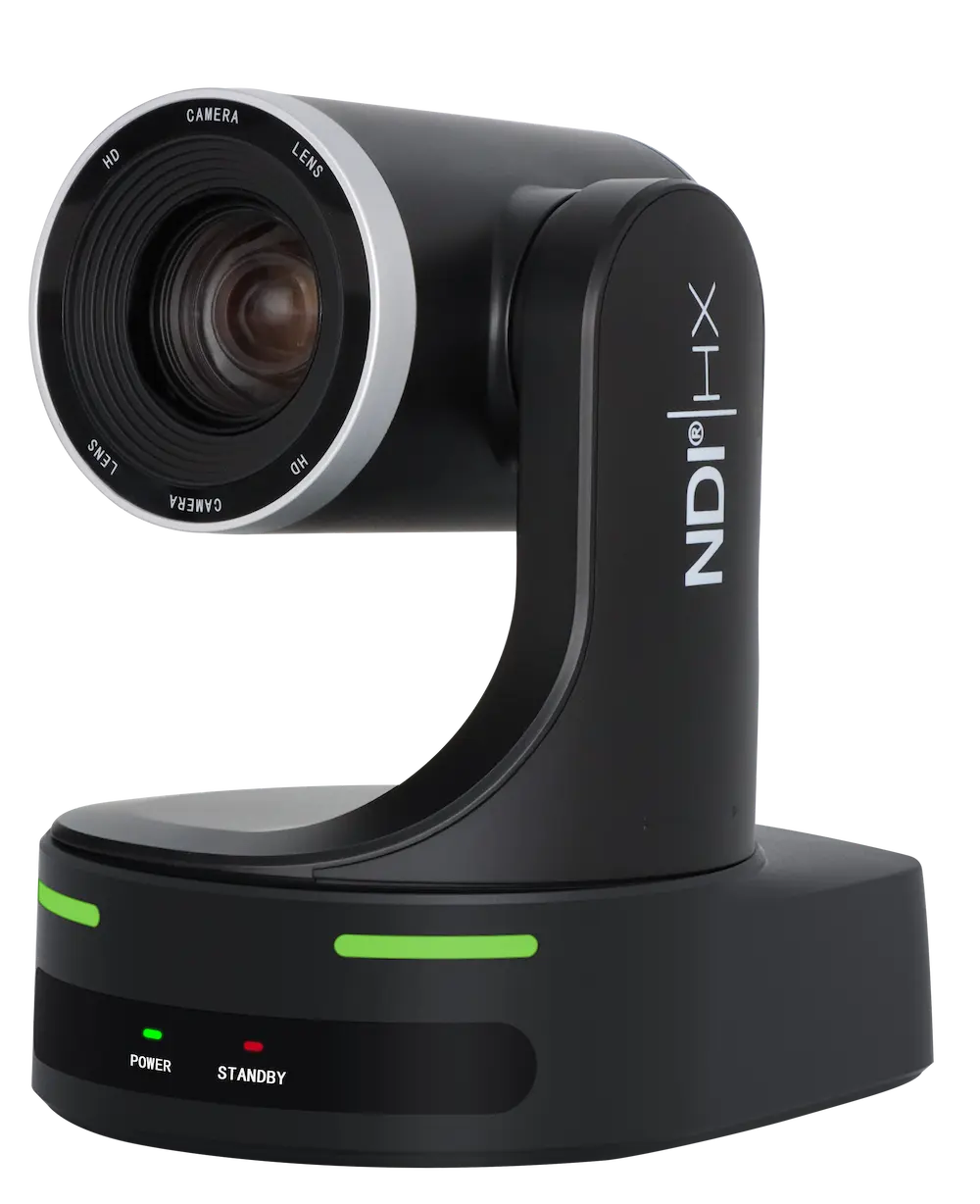

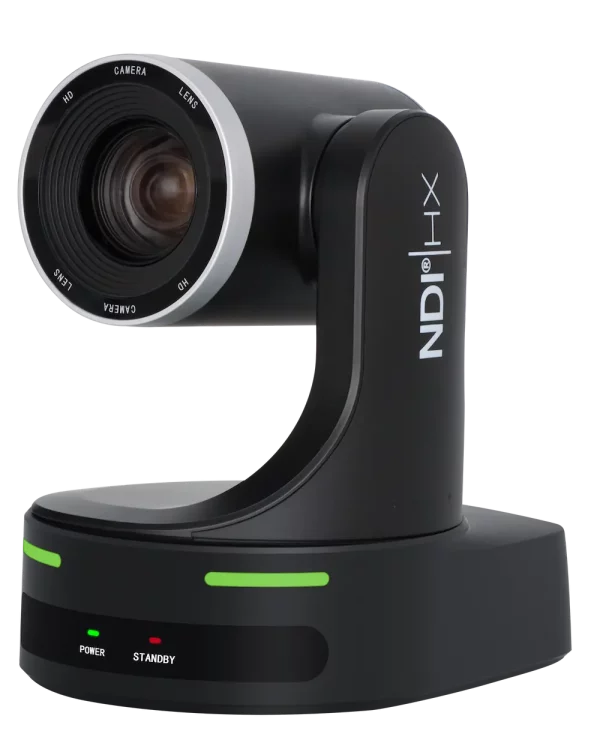

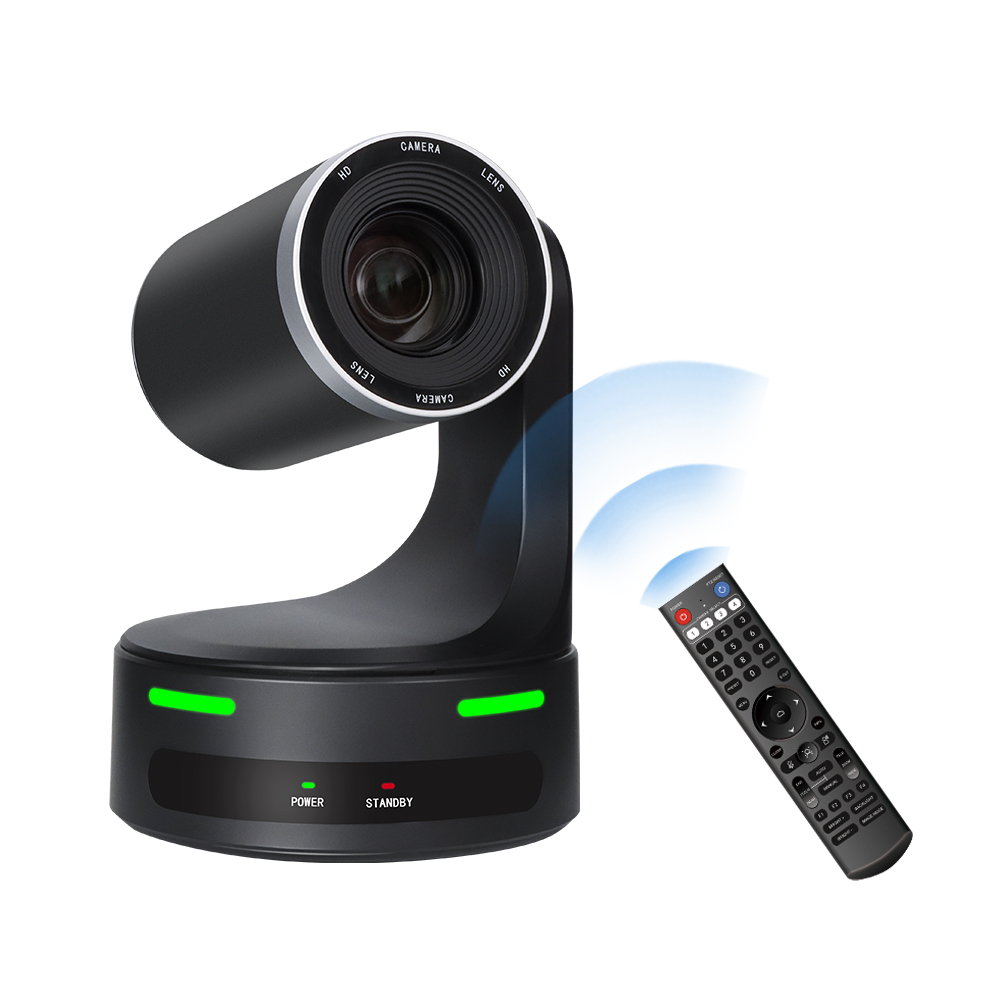

The AV Pro 620-UHSN features a brand-new CMOS image sensor with an ultra-high signal-to-noise ratio that allows the camera to produce exceptional picture quality even in challenging lighting conditions. The camera supports NDI, HDMI, 3G-SDI, LAN, and USB3.0 with a resolution of up to 1080p60. It can be powered via POE to help make installation easy. Control possible via IR Remote Control, RS223, RS485 or LAN.
Key Features
Network Device Interface (NDI): With the latest protocols, this camera integrates seamlessly. It transmits video and can be controlled using NDI-enabled devices.
Modern Design: The camera boasts a sleek, single-arm design, ensuring professionalism in any application. It offers versatile mounting options, including ceiling, desktop, wall, or tripod.
1080P High-Definition Resolution: Equipped with a 1/2.8” Progressive CMOS sensor and 2.07 Megapixels, this camera provides a maximum resolution of 1920×1080 at a frame rate of up to 60fps. Its razor-sharp optics maintain consistent subject focus.
Multiple Output Connections: It supports simultaneous output through USB3.0, HDMI, SDI, and Streaming .h264/.h265 video.
Advanced CMOS Sensor: This camera features a brand-new CMOS image sensor, offering an ultra-high signal-to-noise ratio. This allows the camera to deliver exceptional picture quality, even under challenging lighting conditions.
Integrated Tally Light: The body of the camera incorporates twin LED Tally lights, making it easy to identify which camera is active during a recording or broadcast.

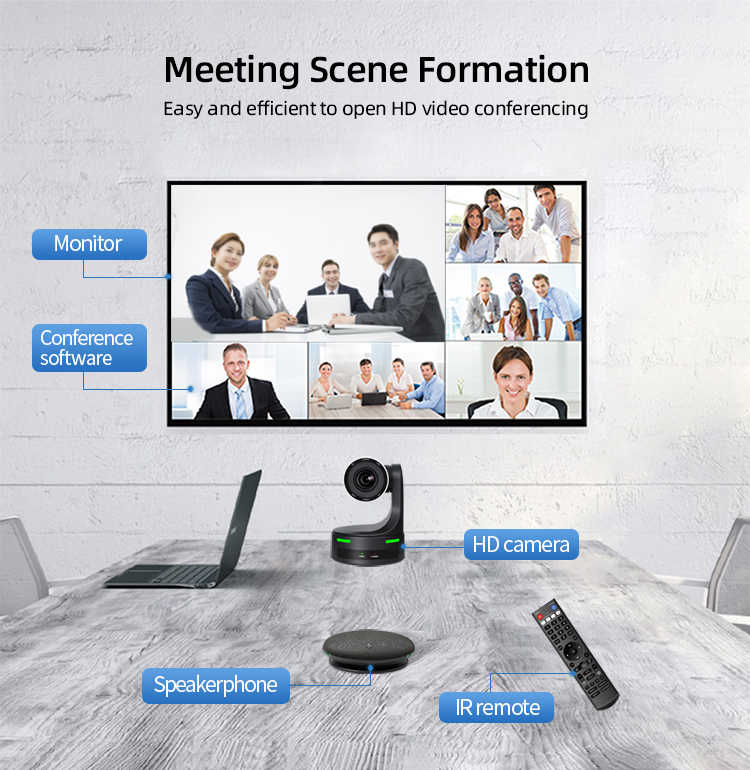

Wide Range of Applications: It is suitable for various uses including tele-education, lecture capture, webcasting, video conferencing, tele-training, tele-medicine, and emergency command systems.
Specifications | |
Resolution | 1080p60/50, 1080p59.94/29.97, 1080p30/25, 1080i60/50, 1080i59.94, 720p60/50 |
Image Sensor | SONY 1/2.8” Progressive CMOS |
Scan Mode | Line by line |
Lens | 20X optical zoom, f=3.9mm(w)~46.8mm(f) |
Focus System | Auto/Manual |
Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/25s~1/10000s |
White Balance | Auto/Manual/One-click/Indoor/Outdoor |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital noise reduction |
S/N Ratio | ?55dB |
Horizontal View Angle | 72.5°(W)?6.5°(T) |
Vertical View Angle | 40.8°~3.7° |

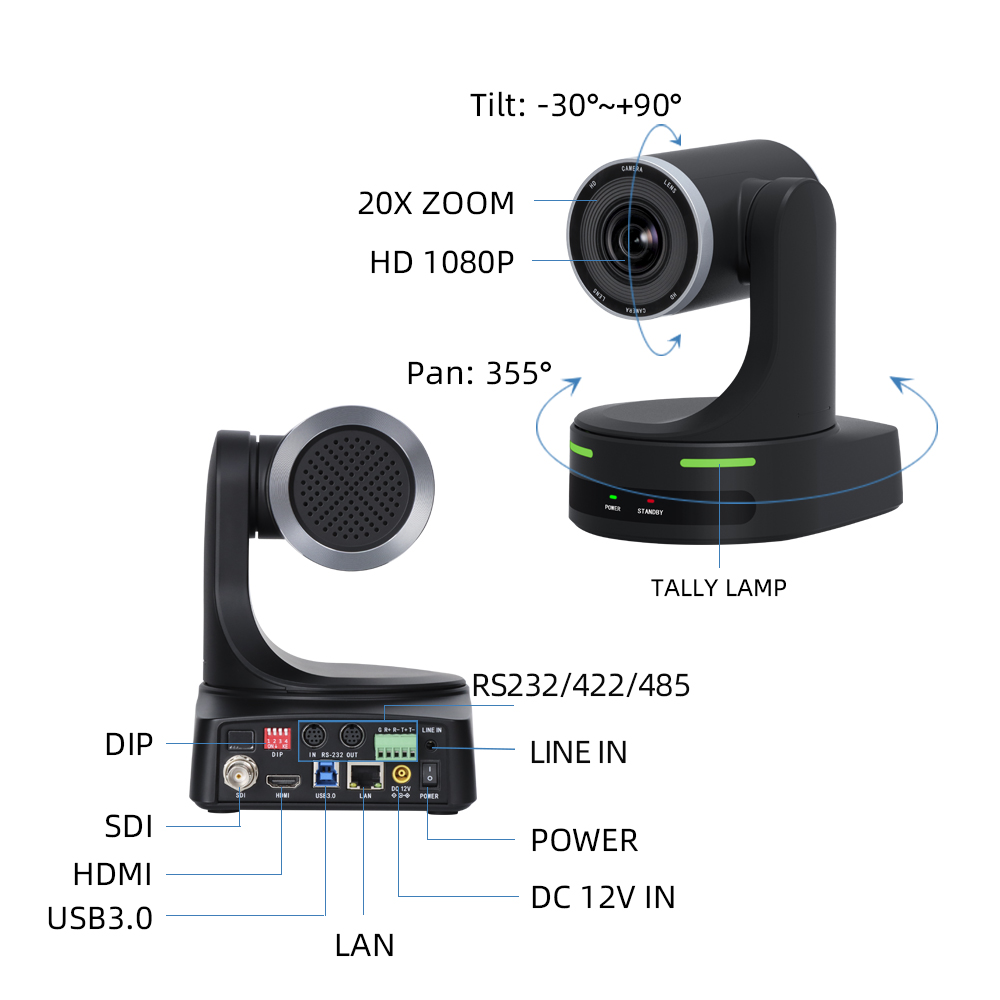

Horizontal Rotation Range | 355° |
Vertical Rotation Range | -30°~+90° |
Horizontal Rotation Speed Range | 1°~90°/s |
Vertical Rotation Speed Range | 1°~90°/s |
Electronic Flip | Support |
Image Freeze | Support |
POE Power Supply | 802.3af(optional) |
Preset Position | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
Accuracy of Preset Position | 0.1°±10% |
USB Features | |
Protocol | UVC1.1, UAC1.0 |
Operating System | Window7 and above, MacOS, Linux, Android |
UVC Video Coding Format | YUY2, MJPEG, H.264, H.265 |
UVC Video Resolution | 320×240, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 3840×2160 and so on |
UVC Video Frame Rate | Max.60 |
Network Characteristics | |
Code Stream | Main code stream*1?Auxiliary code stream*1 |
Coding Format | H.264, H.265, MJPEG |
Streaming Media Protocol | RTMP, RTSP, RTMPS, ONVIF, SRT, NDI|HX(optional) |
Main Code Stream Resolution | 576P30, 720P25, 720P30, 720P50, 702P60, 1080P25, 1080P30, 1080P50, 1080P60 |
Auxiliary Code Stream Resolution | 576P30, 720P25, 720P30 |

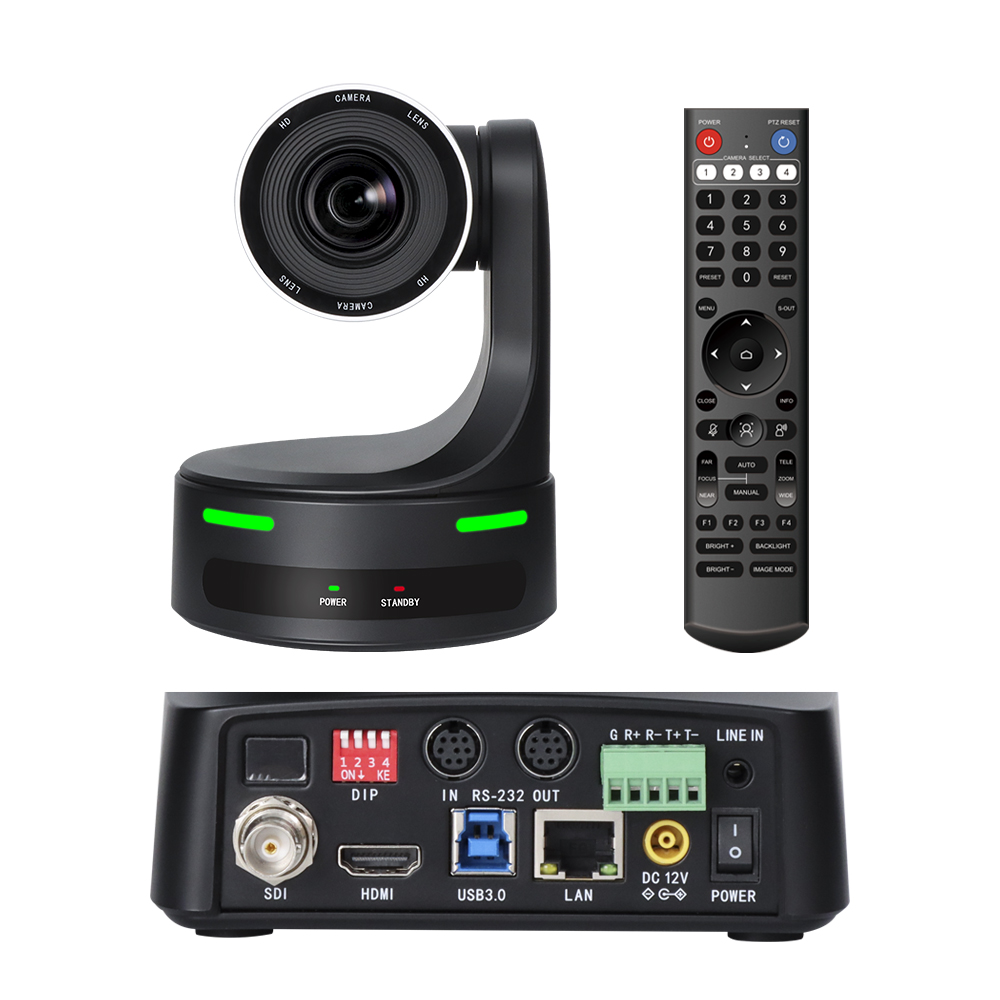

Interface | |
Video Output HD | 1 Line, HDMI: Version1.4 1 Line, 3G-SDI: SMPTE-274M(Level A), SMPTE-296M |
USB Interface | 1 Line, USB 3.0, Type-B Socket |
Network Interface | 1 Line, RJ45: 10M/100M Ethernet port |
Other Input | 1 Line, Line In, 3.5mm AUDIO-IN |
Control Mode | 1 Line, RS232 IN: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol |
1 Line, RS232 OUT: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol | |
1 Line, RS422/485 IN/OUT: Nine-core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol | |
Power Interface | DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4 |
General Specifications | |
Input Voltage | DC 12V |
Input Current | Max.1.0A |
Power Consumption | Max.12W(DC 12V) |
Operating Temperature | 0~40? |
Storage Temperature | -10-60? |
Camera Dimensions | (L)161×(W)133×(H)181mm |
Color | Black |
Weight | 1200g |
Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB3.0 Cable, Ceiling bracket (Wall bracket optional) |

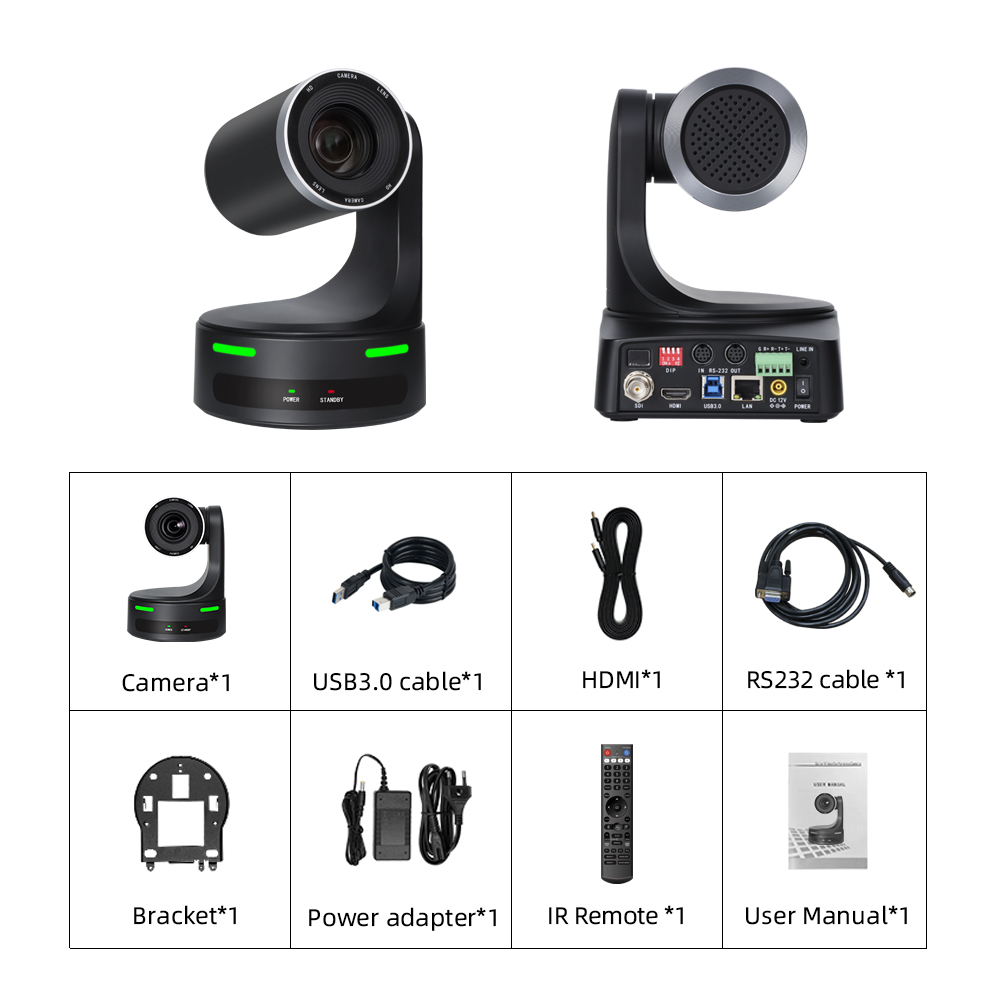

Package Contents
- 1 x PTZ Conference Camera
- 1 x 12V/1A Power adapter
- 1 x User Manual
- 1 x IR Remote Control
- RS232 Cable
- USB3 Cable
- HDMI Cable
- Ceiling Bracket
