SKU: ND-AVOIP-CTRL

$265.00 ex GST

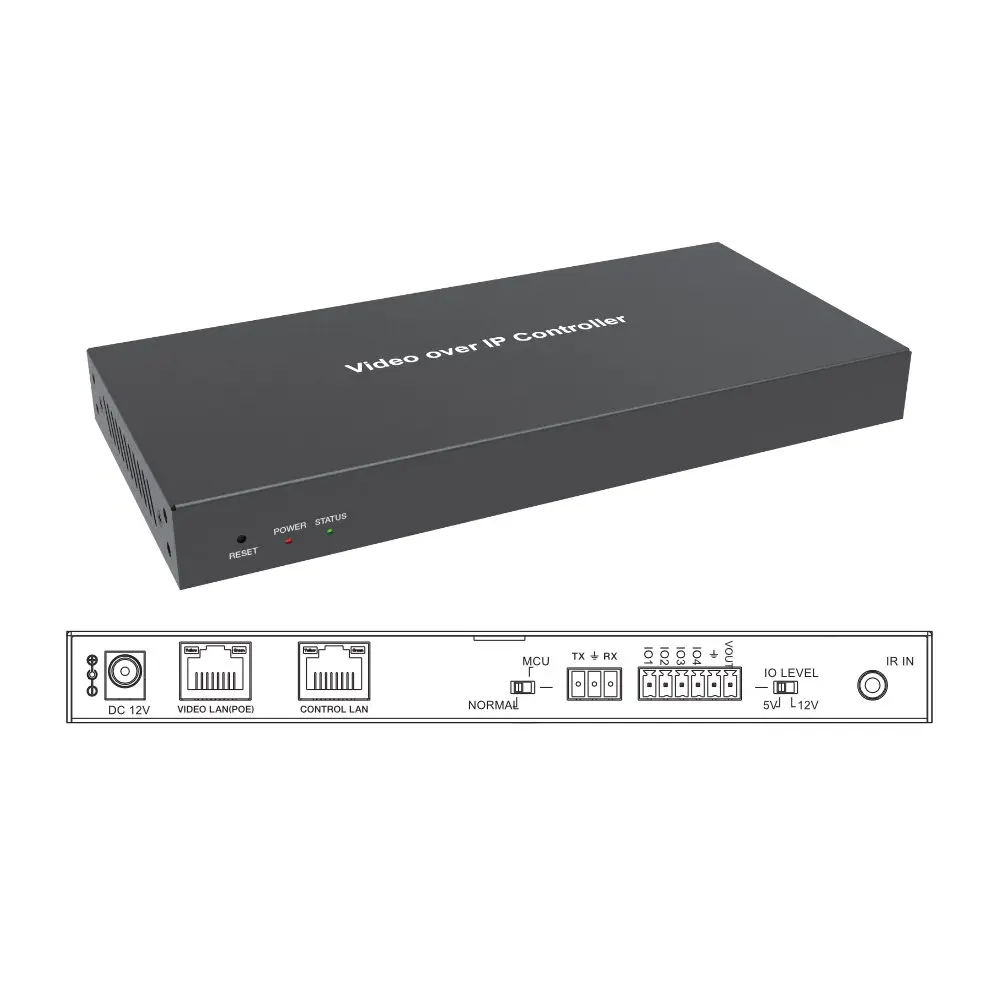

This Video over IP Controller is used to control and manage JPEG2000 IP products. It supports dual 100M network ports, which can be used to isolate the Control network and Multicast video distribution network.
Built-in Web GUI, TCP, RS-232, and IR control are supported.
It can be powered via POE or 12v Power.

Key Features

  • Easy to create project, control and manage the system
  • Flexibly support Auto, DHCP and Manual three types of IP configurations
  • HTTPS, SSH, SFTP security compatible ☆ Built-in Web GUI control interface, supporting Drag & Drop operations
  • Support image preview ☆ Support video, audio, RS-232, IR, KVM control and management of the distributed system
  • Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks.
  • Support LAN/RS-232 port control and third-party central control
  • Support IR signal receiving (3.5mm audio jack, 12V level)
  • 4 channel GPIO control ports (5V/12V optional level)
  • Multiple circuits protection, lightning protection and ESD design

Package Contents

  •  1 ⅹ Video over IP Controller
  • 1 ⅹ 20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
  • 1 ⅹ 3-pin 3.81mm Phoenix Connector (Male)
  • 1 ⅹ 6-pin 3.81mm Phoenix Connector (Male)
  • 2 ⅹ Mounting Ears
  • 4 ⅹ Machine Screws (KM3*6)
  • 1 ⅹ 12V/1A Locking Power Adaptor
  • 1 ⅹ User Manual
