SKU: ND-PS512-KT

$825.00 ex GST

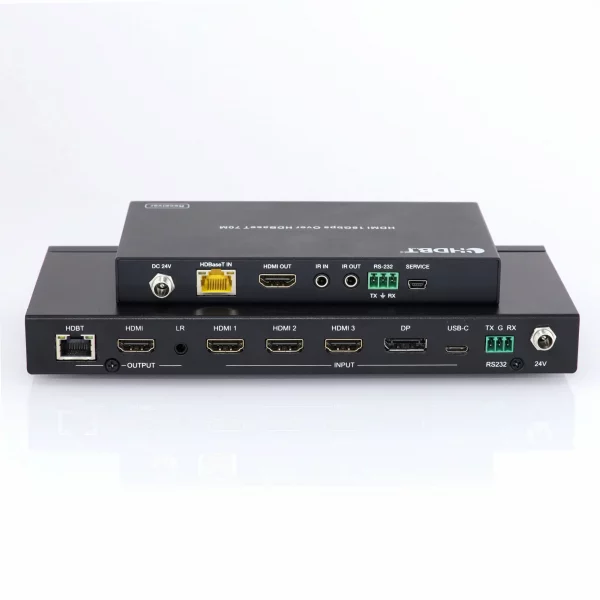

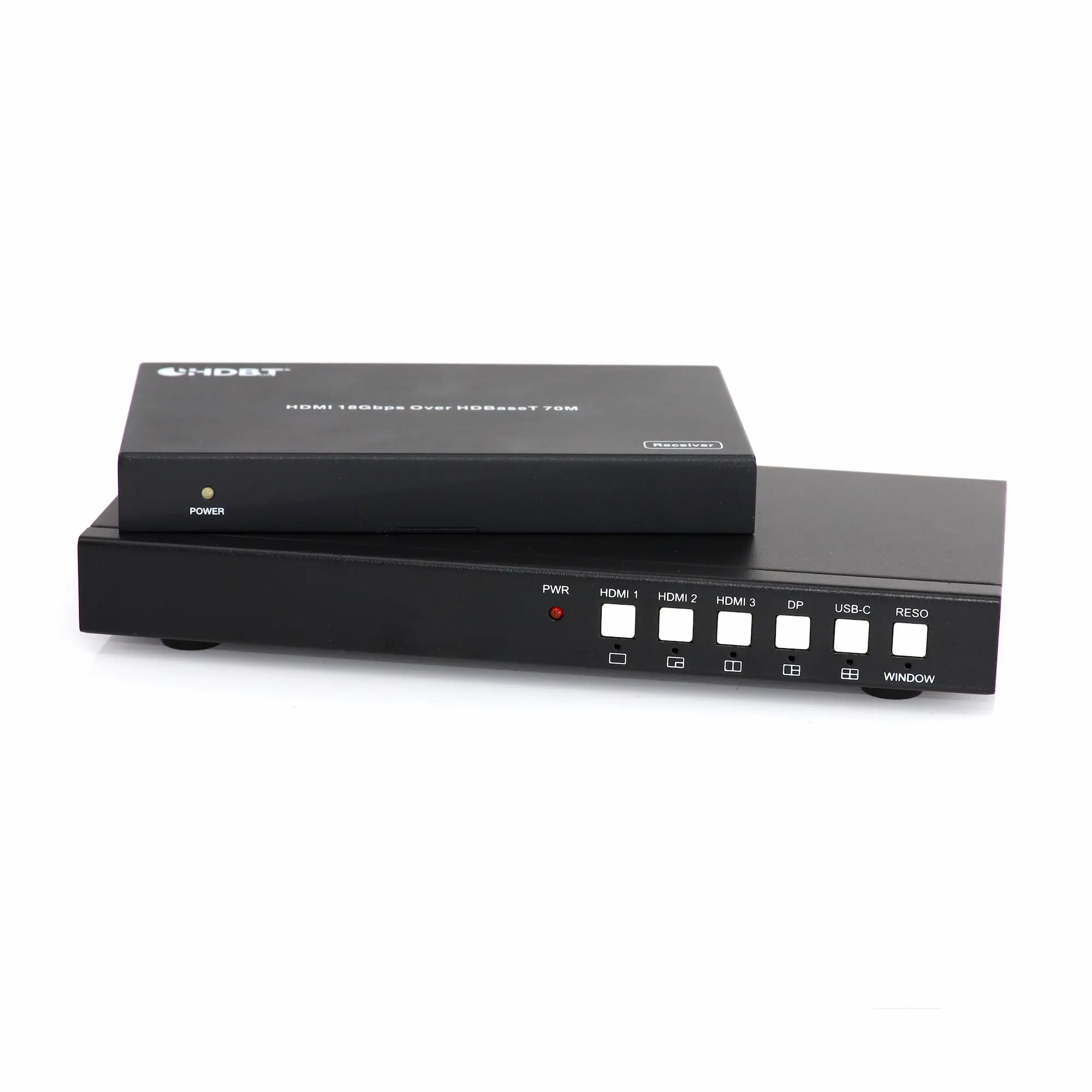

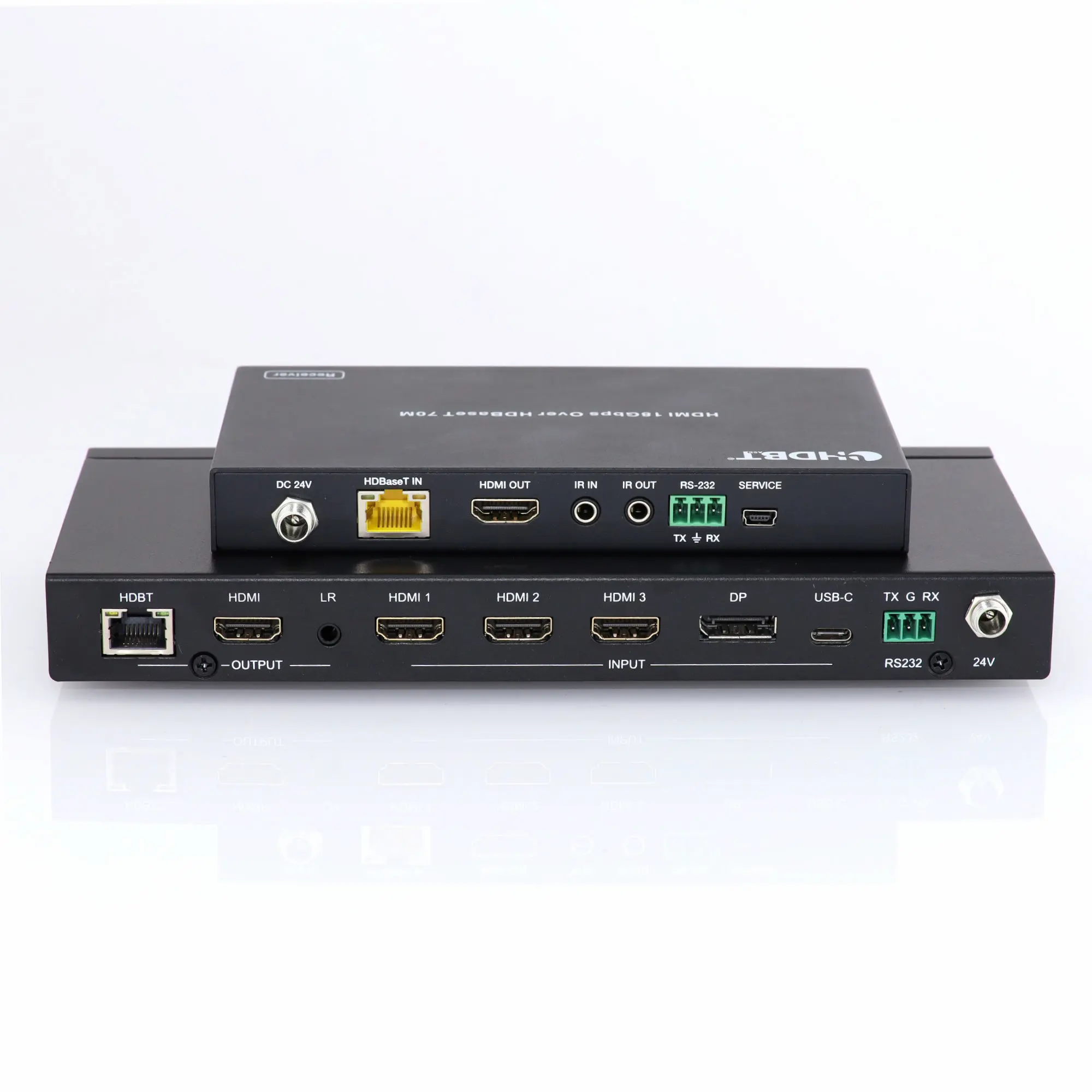

This 5×2 Seamless Presentation Switcher provides 3 × HDMI, 1 × Display Port and 1 × USB-C (video only) inputs, and 1 ×HDMI and 1×HDBaseT mirrored outputs with PIP/PAP/Tri/Quad-view Multiview functionality. It supports single-screen seamless switching. It also supports audio de-embedding via 3.5mm audio output. Controls via Front Buttons or RS232 commands.

Key Features

  • 5 x 2 presentation switcher with PIP/PAP/Tri/Quad-view
  • True seamless switching, no freezing, black or snow screen
  • HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
  • 3 × HDMI, 1 × DisplayPort and 1 × USB-C inputs
  • 1 × HDMI, 1 × Mirrored HDBaseT 70M/POC outputs
  • Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
  • Up to 14 output resolutions selectable
  • 3.5mm analog audio de-embedding
  • EDID management
  • Buttons and RS-232 control

Package Contents

  • 1 × 5×2 Seamless Presentation Switcher
  • 1 × HDBaseT 70m Receiver
  • 1 × 24V/1A Power Adapter
  • 2 × 3-way Female Captive Screw Connector
  • 1 × User Manual

Key Features

  • 5 x 2 presentation switcher with PIP/PAP/Tri/Quad-view
  • True seamless switching, no freezing, black or snow screen
  • HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
  • 3 × HDMI, 1 × DisplayPort and 1 × USB-C inputs
  • 1 × HDMI, 1 × Mirrored HDBaseT 70M/POC outputs
  • Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
  • Up to 14 output resolutions selectable
  • 3.5mm analog audio de-embedding
  • EDID management
  • Buttons and RS-232 control

Package Contents

  • 1 × 5×2 Seamless Presentation Switcher
  • 1 × HDBaseT 70m Receiver
  • 1 × 24V/1A Power Adapter
  • 2 × 3-way Female Captive Screw Connector
  • 1 × User Manual
