4k 18Gbps 4x4 Matrix Switcher with 150m HDBaseT Outputs

4 x 4 150m 18Gbps HDBaseT Matrix Switcher with Analog audio de-embedding on each output

SKU: ND-MX44B150H

$2,318.00 ex GST

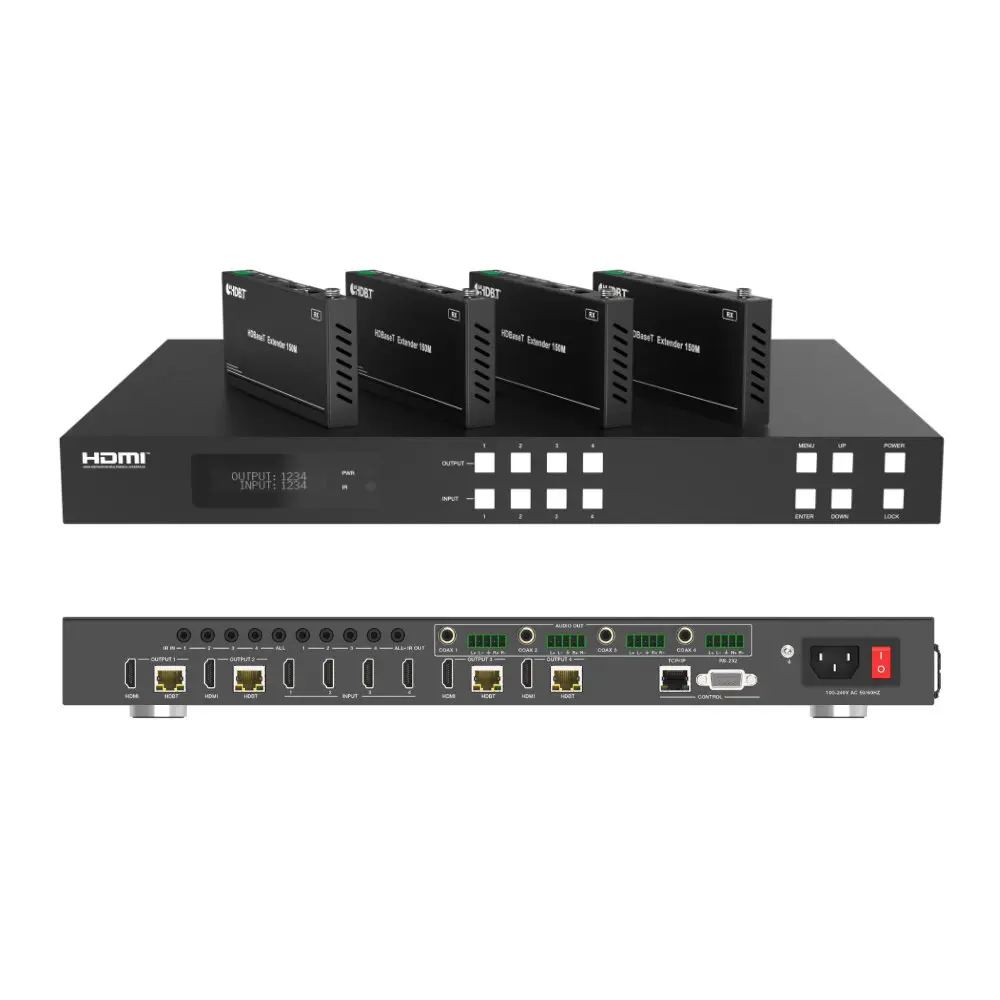

This high-performance 18Gbps HDBaseT Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI Outputs which are mirrored to 150m HDBaseT Extender Outputs.
Each input and output supports up to 4K60 444 resolution and HDCP 2.2. Each output can be individually scaled to 1080p if needed. Input signal sense detected via signal timing available via the control protocol. CEC control via control protocol for inputs and outputs. De-embedded audio as analog L/R and coaxial is available for all outputs. Advanced EDID management is supported.

Key Features

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
  • 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
  • HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
  • Support 18Gbps lossless compressed HDBaseT signal transmission
  • Support 4K->1080P Down Scaler for each output port
  • HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
  • HDBaseT output can extend video transmission distance up to 150m for 1080 or 120m for 4K2K via a single Cat 5e/6/7 cable
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Supports IR matrix
  • Audio de-embedded is supported via analog and coax ports
  • Advanced EDID management and CEC control are supported
  • 24V POC on all HDBaseT ports
  • 1U rack mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
ND-MX44B150H Manual

Package Contents

  • 1 x 18Gbps 4×4 HDBaseT(150M) Matrix
  • 4 x HDBaseT Receiver
  • 1 x Matrix IR Remote
  • 1 x 100~240V AC 50/60Hz Power cable
  • 1 x RS-232 serial cable (1.5 meters, male to female head)
  • 4 x 3-pin Phoenix Connector & 4 x 5-pin Phoenix Connector
  • 5 x IR Blaster cable (1.5 meters)
  • 5 x IR Receiver cable (1.5 meters)
  • 10 x Mounting Ear (Matrix and Receiver)
  • 1x User Manual
