This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR up to 150 meters via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4 18Gbps and HDCP 2.2. HDMI loop port is available on the transmitter and the receiver features a de-embedded L/R audio output. The PoC function means only one power adapter is required and can be placed at either end. Additionally, the extender also includes two-way IR pass-through which allows for source and display control.
Key Features
-
HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
-
Support 18Gbps video bandwidth
-
The maximum extended transmission distance via a single Cat5e/6 cable: 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal
-
Support one HDMI loop output on the transmitter
-
De-embeded audio to analog stereo output on receiver
-
With bi-directional IR, RS-232 and CEC pass-through
-
HDR, HDR10+, Dolby Vision and HLG function supported
-
Support PoC (Power over Cable) function
-
Compact design for easy and flexible installation
Package Contents

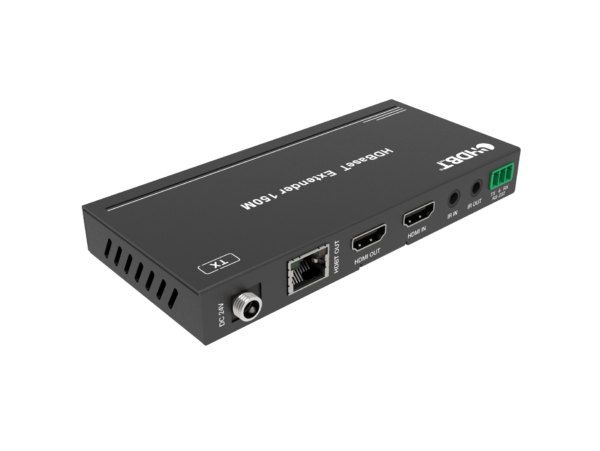

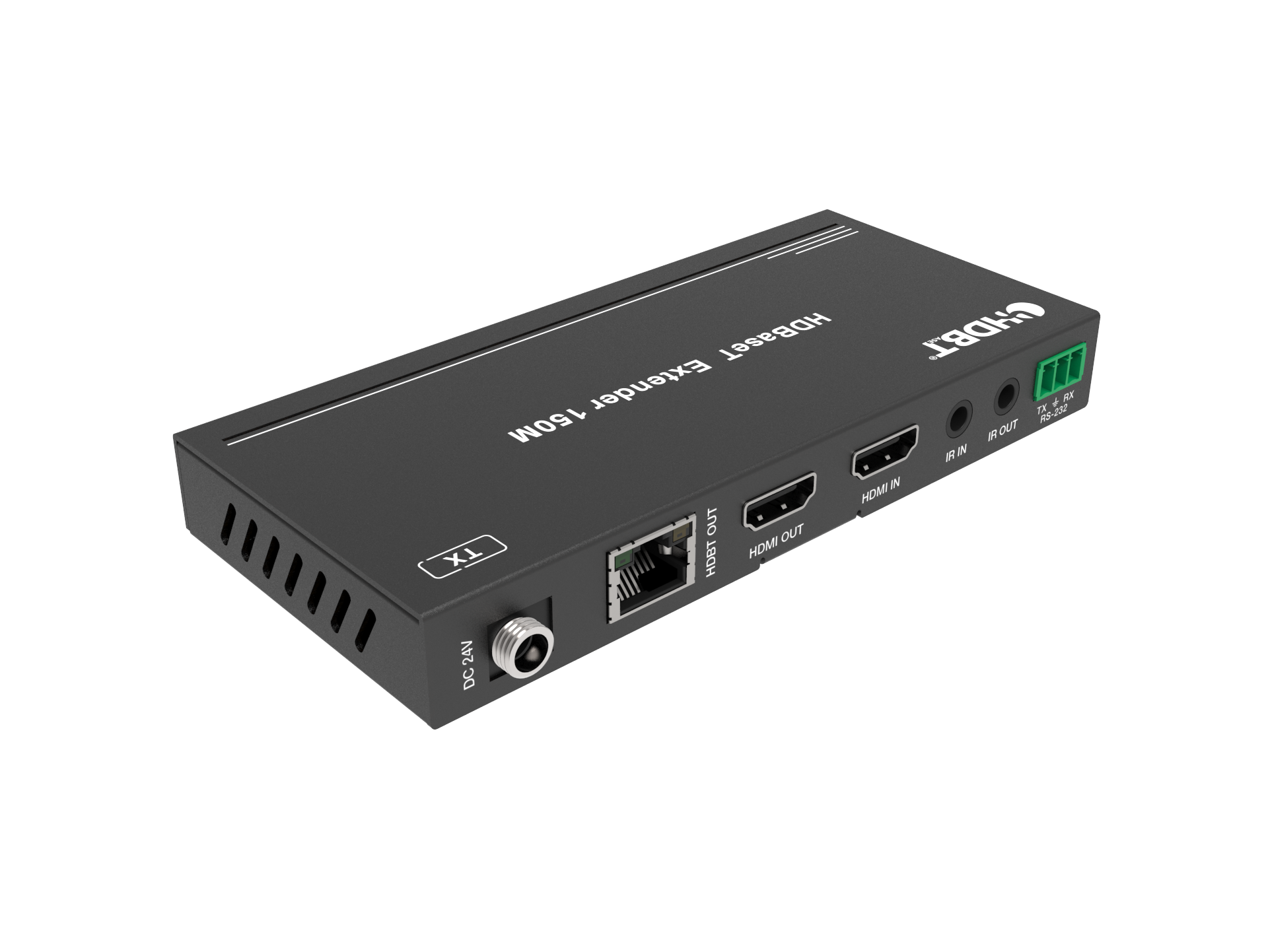

- 1 ? 18Gbps HDMI over HDBaseT Extender (Transmitter)
- 1 ? IR Blaster cable (1.5 meters)
- 1 ? 20~60KHz IR Receiver cable (1.5 meters)
- 1 ? Mounting Ears
- 1 ? 3-pin Phoenix connector
- 1 ? 24V/1A Locking Power Adaptor
- 1 ? User Manual
