SKU: ND-150M-HDBT-X4C-KT

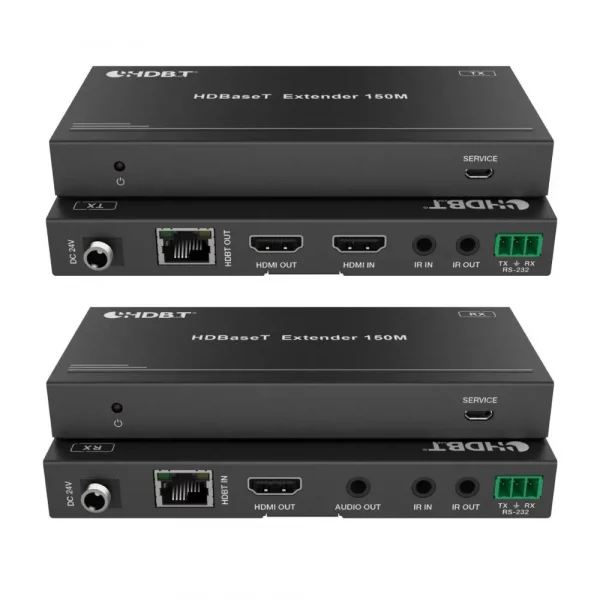

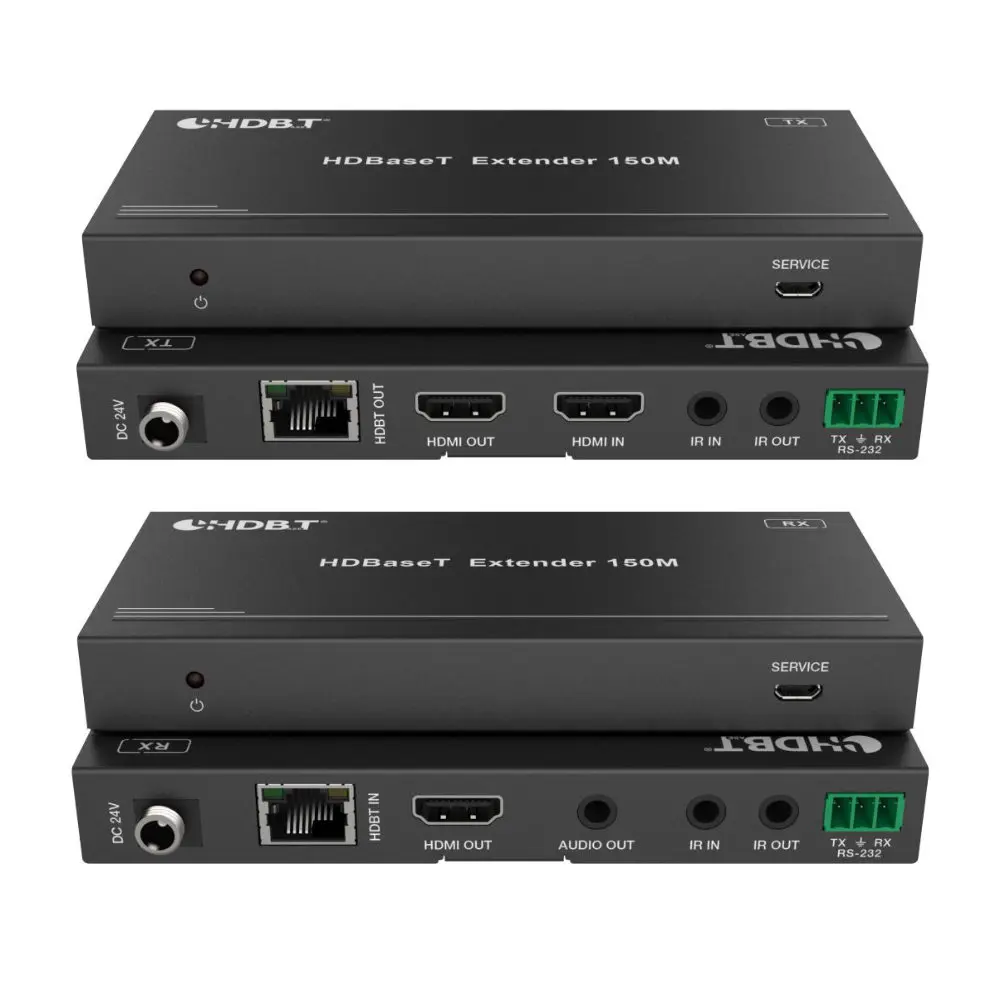

This 18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR up to 150 meters via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4 18Gbps and HDCP 2.2. HDMI loop port is available on the transmitter and the receiver features a de-embedded L/R audio output. The PoC function means only one power adapter is required and can be placed at either end. Additionally, the extender also includes two-way IR pass-through which allows for source and display control.

Key Features

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

  • Support 18Gbps video bandwidth

  • The maximum extended transmission distance via a single Cat5e/6 cable: 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal

  • Support one HDMI loop output on the transmitter

  • De-embeded audio to analog stereo output on receiver

  • With bi-directional IR, RS-232 and CEC pass-through

  • HDR, HDR10+, Dolby Vision and HLG function supported

  • Support PoC (Power over Cable) function

  • Compact design for easy and flexible installation

Package Contents

  • 1 ? 18Gbps HDMI over HDBaseT Extender (Transmitter)
  • 1 ? 18Gbps HDMI over HDBaseT Extender (Receiver)
  • 1 ? IR Blaster cable (1.5 meters)
  • 1 ? 20~60KHz IR Receiver cable (1.5 meters)
  • 2 ? Mounting Ears
  • 2 ? 3-pin Phoenix connector
  • 1 ? 24V/1A Locking Power Adaptor
  • 1 ? User Manual
