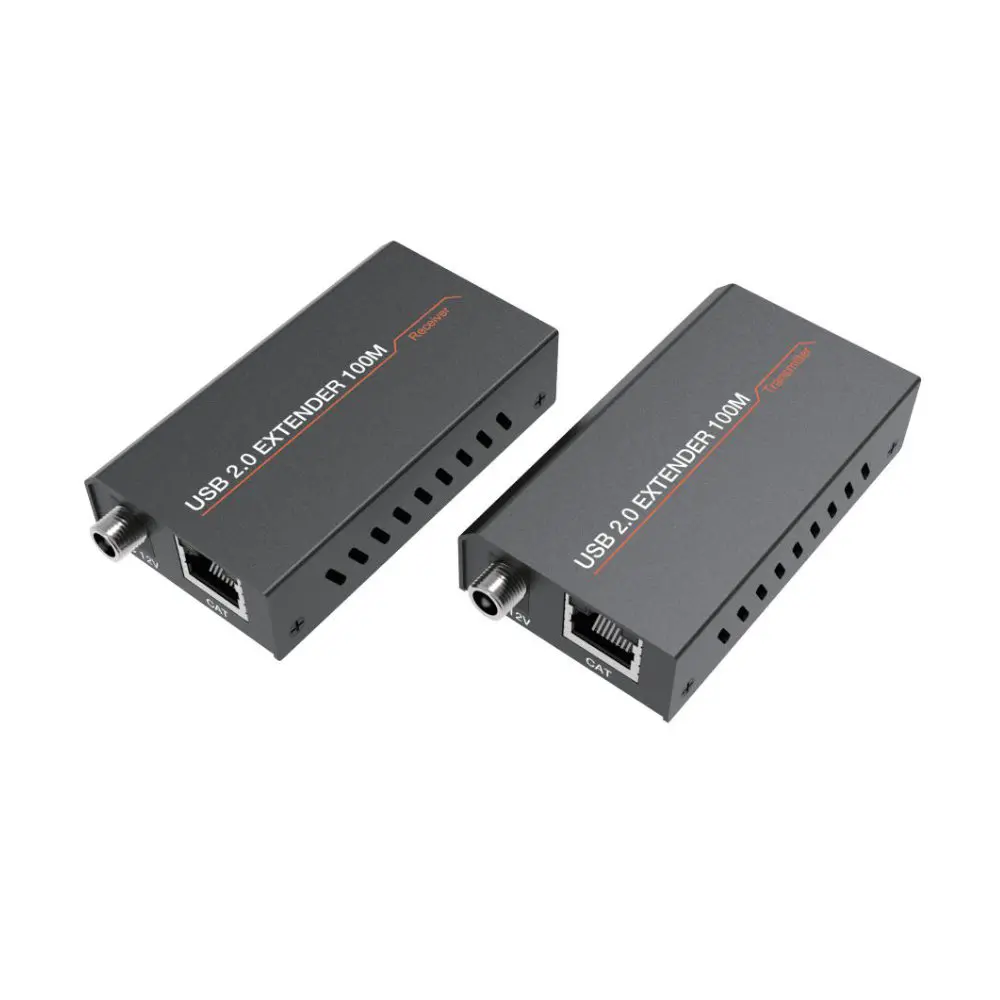

The USB 2.0 Extender can extend USB signal up to 100m via a single Cat5e/6 cable. In the transmitter, the USB-B port is connected to a PC. In the
receiver, you can connect a device with USB port (such as U disk or printer, etc) through the two USB ports. Both Transmitter and Receiver support PoC (Power over Cable) function.
Key Features
- Support USB 2.0 protocol, transmission rate is up to 200Mbps
- Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable
- Support one USB-B port input in the transmitter
- Support two USB 2.0 ports output in the receiver
- Support PoC function, it means that either transmitter or receiver is powered through 12V/1A power adapter, the other doesn’t need power supply
- Simple plug and play, no drive and installation setting required
- Compact design for easy and flexible installation
Package Contents
- 1× USB 2.0 Extender (Transmitter)
- 1× USB 2.0 Extender (Receiver)
- 1× USB cable (USB-B male head to USB-A male head, 1 meter )
- 1× 12V/1A Locking Power Adapter
- 1× User Manual
