SKU: ND-100M-HUAE-KT

$770.00 ex GST

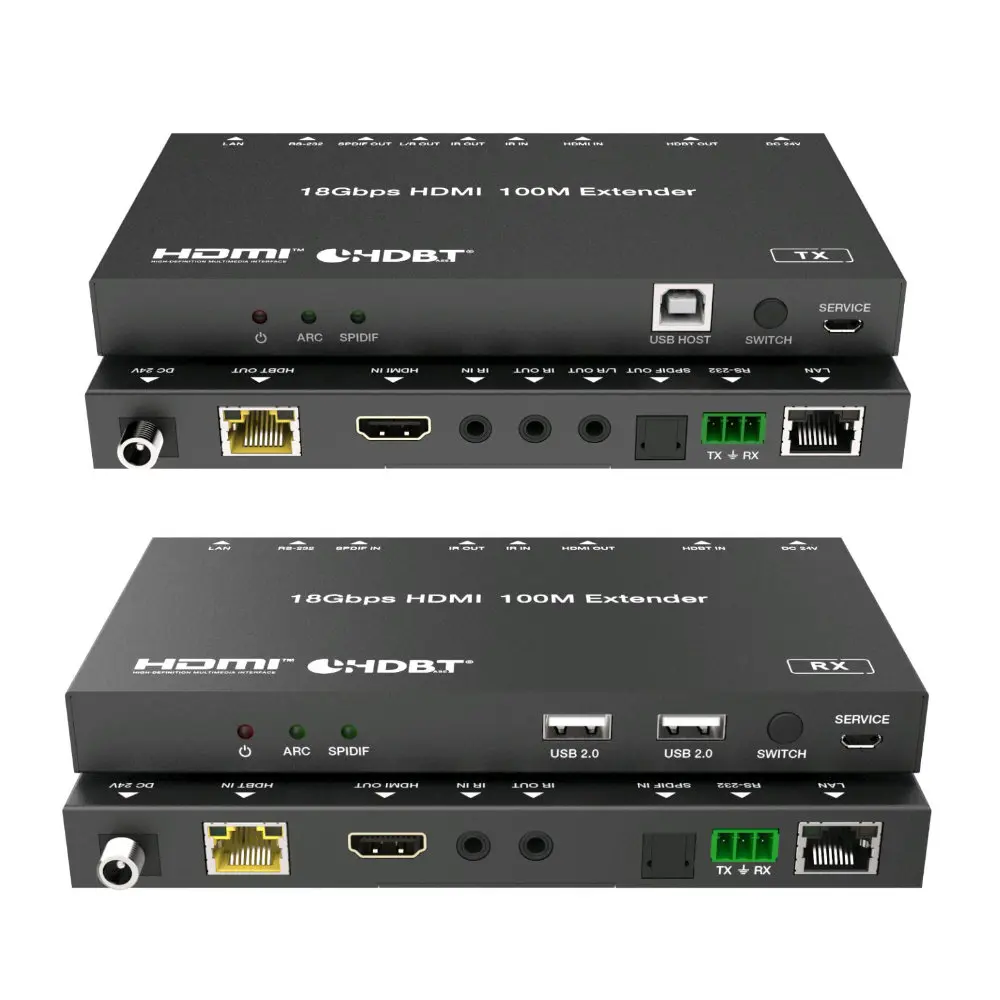

This HDMI Extender can extend HDMI HD signal, bi-directional IR, USB signal, LAN signal and RS-232 control signal, at the distance of up to 328ft / 100 meters between Transmitter and Receiver via a single CAT6a/7 cable. It supports resolution up to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control.

Key Features

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

  • Support 18Gbps video bandwidth

  • The maximum extended transmission distance via a single Cat5e/6 cable: 394ft / 70 meters for 4K2K signal; 492ft / 100 meters for 1080P signal

  • Support ARC (Audio Return Channel) function

  • Support USB KVM function

  • With bi-directional IR, RS-232 and CEC pass-through

  • HDR, HDR10+, Dolby Vision and HLG function supported

  • Support PoC (Power over Cable) function

  • Compact design for easy and flexible installation

Package Contents

  • 1 ⅹ 18Gbps HDMI over HDBaseT Extender (Transmitter)
  • 1 ⅹ 18Gbps HDMI over HDBaseT Extender (Receiver)
  • 1 ⅹ IR Blaster cable (1.5 meters)
  • 1 ⅹ 20~60KHz IR Receiver cable (1.5 meters)
  • 2 ⅹ Mounting Ears
  • 2 ⅹ 3-pin Phoenix connector
  • 1 ⅹ 24V/1A Locking Power Adaptor
  • 1 ⅹ User Manual
